PTP blister lidding foil

  • alloy8011
  • TemperH 18
  • StructureOP/Ink/Al/HSL(Heat seal lacquer)
  • Thickness20mics, 25mics and 30mics
  • Weight of HSL3±1gsm, 5±1gsm, 7±1gsm
  • WidthCustomized from 60mm to 700mm
  • Inner core ID76mm or152mm
  • PackingStandard pharmaceutical packing
  • TAGSBlister Foil , Pharmaceutical packaging


  • Product Details

  • Inquiry

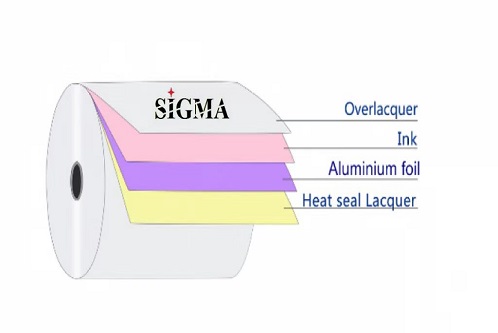

Structure of blister foil

  • 1st layer: Over lacquer, to protect the printing, ensure the ink fastness and not easy to peel off.
  • 2nd layer: Ink, text and information printing.
  • 3rd layer: Aluminium foil, thickness can be 20mics, 25mics and 30mics
  • 4th layer: Heat seal lacquer, heat seal with PVC, PVDC or other materials.

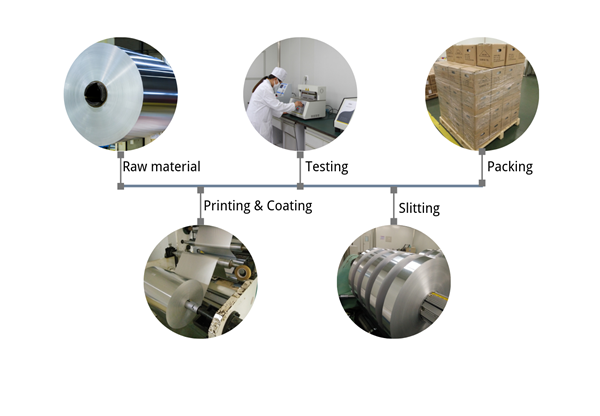

    Processing of printed blister foil

    • Raw material: High quality pharmaceutical grade aluminium foil, H18 temper.
    • Coating and printing: One side printing with texts and information, then coated with outer protective primer.
      Another side coated with heat seal lacquer.
    • Testing: Testing physical properties, heat seal strength etc, to ensure the foil is qualified.
    • Slitting:Slitting the foil into width according to customer’s requirement.
    • Packing: Standard pharmaceutical packing, ready for delivery.
    • Features & Advantages of printed blister foil

      • ✓ Printed with brand and medicine information already, can be sealed to PVC,PVDC and Alu alu foil directly, excellent seal performance.
      • ✓ 100% Barrier against humidity,gases,light.
      • ✓ Awesome properties of anti-oxygen,moisture-proof,leak-proof,antipollution.
      • ✓ High degree of thermal stability,hygiene and bacterium-resistance.
      • ✓ Printing could be full printing, and customer’s logo and text of medicine information
    • Applications of printed blister foil

      • ✓ Use as a base lidding seal for push-through packaging.
      • ✓ Packaging for pharmaceutical tablets, capsules or pills.
      • ✓ Packaging for small candies and marble chocolate.
